Ark Data Centres – Spring Park Campus

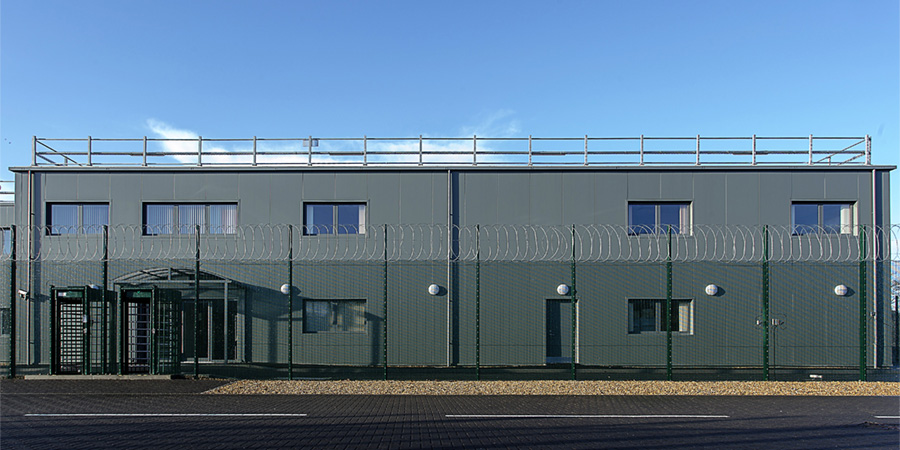

  • Ark Cody Park data centre

Project Description

Ark Data Centres, Spring Park, Westwells Rd, Corsham, SN13 9GB

  • 38 acre data centre campus 8 miles south of M4 in Wiltshire
  • Five data centre buildings, nearly 200,000 sq ft net tech in total
  • 24MW IT load, high security site
  • Modular design concept, low PUE

Colo-X analysis

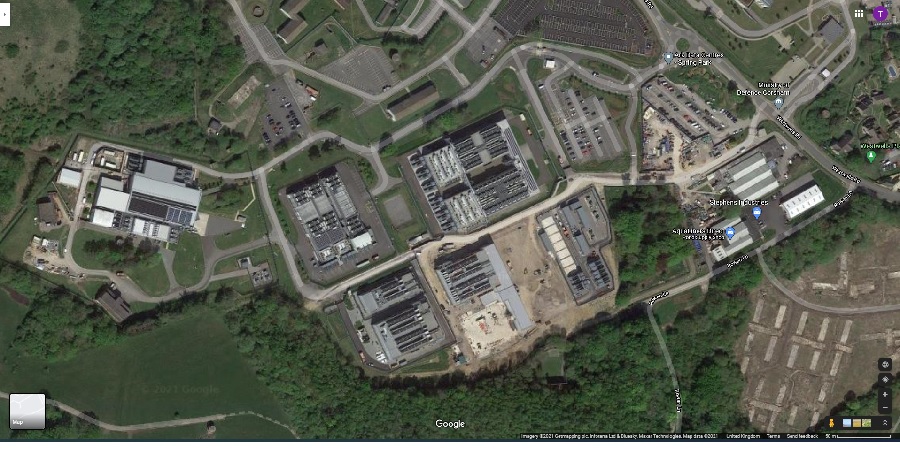

The Ark Spring Park Campus is an ultra-secure data centre campus with five data centre buildings designed to offer 30MW of IT load over nearly 200,000 sq ft of IT space.  Ark remain largely focussed on large wholesale data centre solutions with retail colocation space available via Ark’s tenants (ask Colo-X for options).   The high security aspect of the location is further enhanced by the presence of significant MoD (UK Ministry of Defence) presence in the area.


Facility description

As of summer of 2019, three buildings are in operation, SQ17, the original building which opened in 2011 and P1 and P2, each of which is 31,000 sq ft net technical space or 4.5MW of IT load.  Planning has been approved for two further data centre buildings, P3, of similar capacity to P1 and P2 and P4, offering twice the total amount.

The modular design concept offers 6 data rooms in building P1-P3, each hall providing 760kW or 182 cabinets at 4.2kW each.  The earlier SQ17 building offers 24 data halls at .5MW each or 12MW in total.

The design PUE is 1.2 meaning 200kW of cooling power is needed for each 1MW of IT load.


Technical stats

Size 192, 000 sq ft net tech
Total customer power 30MW
Percentage occupied 70%
Operational since 2011
Installed clients 10
Networks available on site 10
Standard power 5kW per cabinet
24/7 on-site support Yes
24/7 access Yes
Pricing POA
